Survey Before Turning an Undeveloped Parcel Into a New Homesite
Raw land looks simple from the road. Walk it, though, and you’ll find hills, dips, wet spots, and rocks that never show up on a plat map. A topographic survey brings all of that into view before anyone draws up house plans. It tells you where the ground actually rises and falls, where water tends to collect, and where a house, driveway, and septic system might realistically fit.
Mapping Buildable Areas on Raw Land
Not every part of a lot can hold a house. Some sections are too steep. Others sit in a low spot that floods after every heavy rain. A few might be covered in dense trees or sit on rock close to the surface, which makes digging a foundation harder and more expensive.

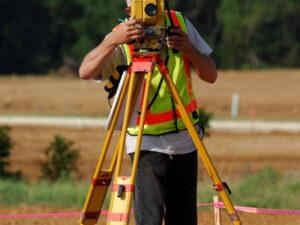

A survey crew walks the property and records these conditions directly. They note where the slope gets too sharp for a driveway, where the soil looks unstable, and where drainage naturally cuts across the land. Once that information is mapped out, it’s much easier to see which section of the parcel can actually support a home and which sections are better left alone.
This isn’t the same as a boundary survey. Boundary work tells you where your property lines sit. Mapping buildable areas goes further. It shows what’s happening inside those lines, on the ground itself, so the owner isn’t guessing about where construction can start.
Using Topographic Data to Choose a Practical House Location
Once you know the general buildable zone, the next question is where exactly the house should sit within it. Elevation makes a big difference here. A home placed too low can end up collecting runoff from every direction. One set too high on a ridge might face wind exposure or a driveway that’s brutal to grade.
Topographic data gives designers actual numbers to work with instead of guesses. Contour lines show how the land rises and falls in small increments. A designer can look at those lines and figure out where a flat building pad makes sense without massive cuts or fills. Low areas get flagged early, so nobody plans a garage floor three feet below where water naturally pools after a storm.
This also helps position the house relative to other features that come later, like the driveway and septic field. Getting the elevation data right at this stage saves a lot of second-guessing once actual site design begins.
Planning Access From the Road to the Future Homesite
A homesite is only useful if you can actually get to it. On undeveloped land, that’s not always simple. The shortest line from the road to the house pad might cross a steep bank, a drainage swale, or a patch of unstable soil.
Survey data helps map out a route that a vehicle can realistically use. Grade changes matter a lot here. A driveway that climbs too fast becomes dangerous in ice or rain. Crossing a drainage path also needs attention, since water has to keep moving even after a driveway cuts through its natural route. A culvert or a different alignment might be needed to avoid problems down the road.
None of this happens in isolation either. The driveway route has to connect logically with where the house sits and where other site improvements will go. Planning access early, based on real terrain data, keeps the whole layout working together instead of fighting itself.
Coordinating the Future House, Septic Area, and Utilities
A homesite involves more than just a house. There’s usually a septic system, a well or water line, and utility runs for power and communication. Each of these needs its own space, and none of them can just be placed wherever looks convenient on paper.
Septic systems, in particular, need specific soil and slope conditions to work properly. That area has to stay clear of the house, the driveway, and any future additions. Utility routes need a path that doesn’t cross wet ground or require tearing through rock. When all of this gets mapped against the same survey, the site-planning team can see how these pieces fit together in real space, not just on a rough sketch.
Coordinating these features early also prevents a common headache: designing the house first, only to discover later that the septic field has nowhere left to go. Spatial planning up front avoids that kind of conflict.
Creating Reliable Survey Data for the Site-Planning Team
A homesite project usually involves more than one professional. Architects design the house. Engineers handle grading, drainage, and utility systems. Contractors have to build all of it on the actual ground, not on an idealized flat lot. Every one of these people works better when they’re using the same accurate starting point.
An existing-conditions survey gives the whole team a shared base to design from. Instead of each person working off assumptions, everyone sees the same elevations, slopes, and site features from day one. That shared accuracy cuts down on the kind of redesign that happens when a foundation plan runs into a rock ledge nobody knew was there, or when a driveway grade turns out to be steeper than expected.
Getting reliable data early doesn’t just save time. It also reduces costly surprises once construction starts, when changes are far more expensive to make.
Frequently Asked Questions
What type of survey is usually needed before building a house on undeveloped land?
It depends on the parcel and the scope of the project, but most homesite planning starts with accurate existing-conditions and topographic information. Additional surveying is often needed later as the design moves forward and construction begins.
Can a land survey help determine where to place a house on vacant land?
Yes. Surveyed terrain and existing site features give the owner and design team a clear picture of where a home can reasonably sit. Final placement still depends on other factors too, including zoning rules, soil conditions, utility access, and engineering requirements.
Why is a topographic survey important for a new homesite?
Elevation and terrain data guide decisions about grading, drainage, driveway design, and foundation planning. Without it, a design team is essentially guessing at how water moves and where the ground can safely support construction.
Should the land be surveyed before designing the driveway and utilities?
Yes. Establishing accurate site conditions first lets designers plan a driveway route and utility paths that actually work with the terrain, instead of running into grade or drainage problems after plans are already drawn.
When should a surveyor become involved in developing an undeveloped parcel?
Early. Bringing in a surveyor before major design decisions are made means terrain problems get caught while changes are still simple and inexpensive. Waiting until after construction starts almost always costs more.
